HG-B100T automatic flat hydraulic press machine

FOB Reference Price:Get Latest Price
$16,200.00 - $29,000.00 / Sets | 1 Set/Sets Press Machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
Normal
Power Source:
Hydraulic
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
honggang
Model Number:
HG-B100T
Voltage:
220V,380V,415V
Power(W):
7.5KW
Weight:
5500KG
Dimension(L*W*H):
3000X2300X1570MM
Certification:
CE
Product name:
Hydraulic Press machine
Automatic Grade:
semi-auto;auto
Feeding side:
2
Cylinders:
Double
Columns:
Four
Stroke:
50-240mm
Cutting area:
810X1400mm
Cutting force:
100 tons
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
18 MONTHS
Supply Ability
Supply Ability:
30 Set/Sets per Month Press Machine
Packaging & Delivery
Packaging Details
press machine
1,Standard export carton with plastic film.
2,as customer's request...
Port
Guangzhou,Shenzhen,Foshan
Lead Time :
Shipped in 15 days after payment
Video Description

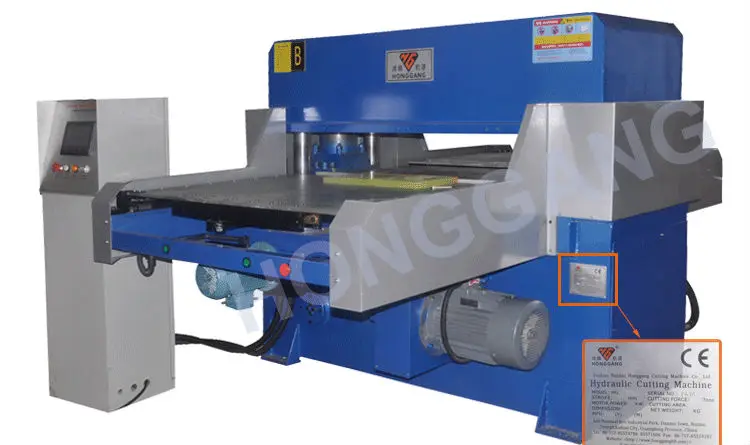

HG-B100T automatic flat hydraulic press machine



Product Description



Description:

The HG semi-auto series Hydraulic Press machines are designed to support high productivity demand, and die cut large and thick nonmetal materials especiallly for complicated cutting dies of thermoforming, plastic products, or car interior trim products etc wtih large cutting area and long strokes.



Hydraulic Press Machine semi-auto types cutting area usual 810x1400mm(32") and cutting force usual 60 tons, 80 tons, 100 tons, 120 tons,150 tons,200 tons, the stroke 50x240mm.  Special sizes are available upon request. Automatic Press machine


Products Show:

HG-B100T automatic Flat Hydraulic Press Machine

HG-B100T automatic Flat Hydraulic Press Machine
Benefits of Hydraulic Press Machine:
1)PLC control system,offering semi-auto, and full-auto cutting job.
2)Sheet or roll materials are accepted;double side semi-auto feeding for sheet, and auto-feeding with rollers for roll materails by computer controlled.
4)World brand parts.(It's availabe to contact for parts details.)
5)High productive and easy for two operators to handle it, and only one working is available too.
6)CE certificational quality with competitive price in HG high quality level.
7) Special sizes are available upon request.

How to operate:
HG-B100T automatic Flat Hydraulic Press Machine
1)Two work trays provides easy loading and unloading of dies and material.
2)Two cutting methods available: pressure mode or stroke end mode.

Semi-auto cutting:
1)after preparing the die and the material. press the two green button at the same time to feed.
2)after cutting, the head lifts and the work tray comes out automatic, then pick the samples.

 automatic cutting:
1)Preparing roll materials and fix the cutting dies to the beam.
2)Start and control the processing by the touching screen. Automatic Press machine


application:
Hydraulic Press Machine die press a range of nonmetal material for industries below.
HG-B100T automatic Flat Hydraulic Press Machine
HG-B100T automatic Flat Hydraulic Press Machine
Parameter:
Model  HG-B60THG-B80THG- B100THG-B120THG-B150T

HG-B200T

Cutting Force 60 tons80 tons100 tons

120 tons

150 tons

200 tons

Dimension3000*2300*1570mm
Cutting area 810*1400mm
Motor5.5kw7.5kw7.5kw9.5kw        9.5kw11.5kw
Stroke50-240mm
Net Weight4500kg.5600kg5500kg6000kg6300kg6800kg

How to choose HG  Hydraulic Press Machine :
1)material: nonmetal is available.
2)Cutting area choice depends on your material size.
3)Feeding system choice depends on your material style.
4)The force choice depends on the perimeter of the die blade.
Welcome to contact us to select the right model.


Our Services



Trade term:FOB,CIF,EXW

Payment terms:T/T,Westem Union,PayPal,Escow,MoneyGram.

Payment Condition:30% deposit in advance. 70% balance before delivery.

Delivery time:5-15days working days after deposit.

Packing:Wooden case with plate.

Shipment:By Sea.

Company Information



HG-B100T automatic Flat Hydraulic Press Machine
HG-B100T automatic Flat Hydraulic Press Machine
With 25 years professional manufactuing experience in the machinery industry,We are proud of our machinery.

1)advanced automatic equipment,&

2)professional Product Line,&

3)well-trained workers,&

4)strict QC standard,&

5)25 years focus on OEM items

maks us have the ability to provide our customers with high-quality world-class machines.



HG-B100T automatic Flat Hydraulic Press Machine

 Estabished in 2003 in Foshan Guangdong, China ,Honggang cutting machine Co.,Ltd.,is a leader specializes in manufacturing of hydraulic cutting machine,leather embossing machine and belt plating machineUntil today,we are the biggest cutting machine and embossing machine manufacturer in China.


FaQ





1.The differnces between HG hydraulic die manual type and semi-auto type cutting machines.

 Cutting areaCutting forceFeeding systemWorking sideDevery time
Manual610x1220/1600mm, not limited25t-60tmanual, or semi-autoone7-15 days
Semi-auto810x1400/1600mm, not limited60t-200tmanual to autoone,or two15-25 days



2.Can you make the die for us?

We just manufacture cutting dies by your design.



3.How can the Press Machine  promise the highly precise cutting?

1)Thanks to its four -column double-cylinder auto-balance system with a auto-balance rod.

2)Different from other cutting machine, Press Machine can automaticly slow down when the head touching the material, ensuring the straight of the cutting line from the top to the bottom.

HG-B100T automatic Flat Hydraulic Press Machine


 Welcome to visit  HG-B100T automatic Flat Hydraulic Press Machine ,
if any questions,please contact Ms.Tina

....
